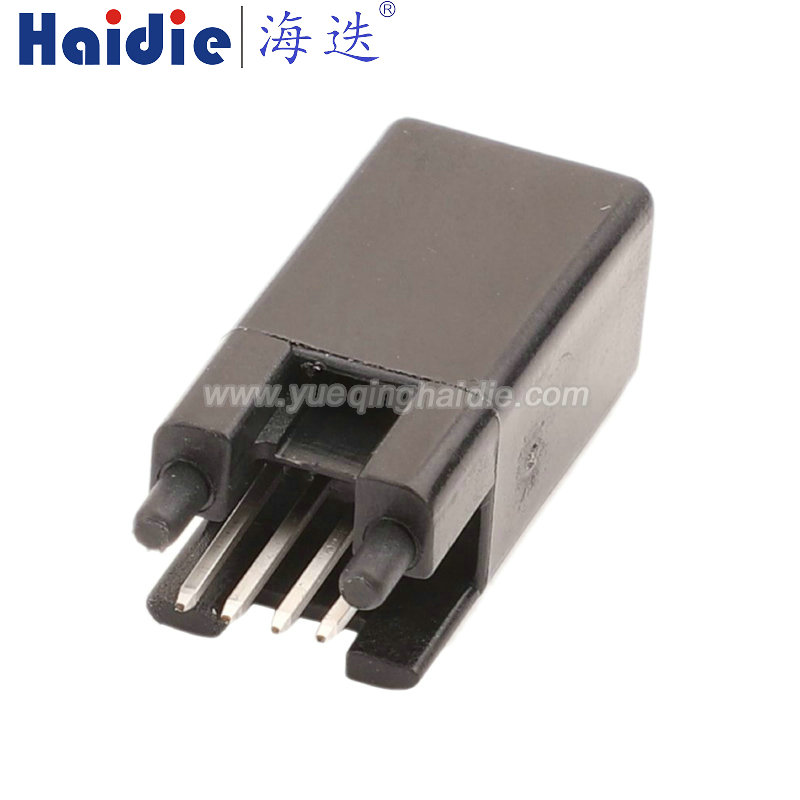

1376515-1 Connector Header Through Hole 4 position 0.079" (2.00mm)
1376515-1
Send Inquiry
Mfr | TE Connectivity AMP Connectors |
Series | - |
Part Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch - Mating | 0.079" (2.00mm) |
Number of Positions | 4 |
Number of Rows | 1 |
Row Spacing - Mating | - |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall |
Mounting Type | Through Hole |
Termination | Solder |
Fastening Type | Latch Holder |
Contact Length - Mating | 0.217" (5.50mm) |
Contact Length - Post | 0.157" (4.00mm) |
Overall Contact Length | - |
Insulation Height | 0.961" (24.40mm) |
Contact Shape | Square |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin |
Contact Material | Brass |
Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
Features | Board Guide |
Operating Temperature | -30°C ~ 100°C |
Ingress Protection | - |
Material Flammability Rating | - |
Insulation Color | Black |
